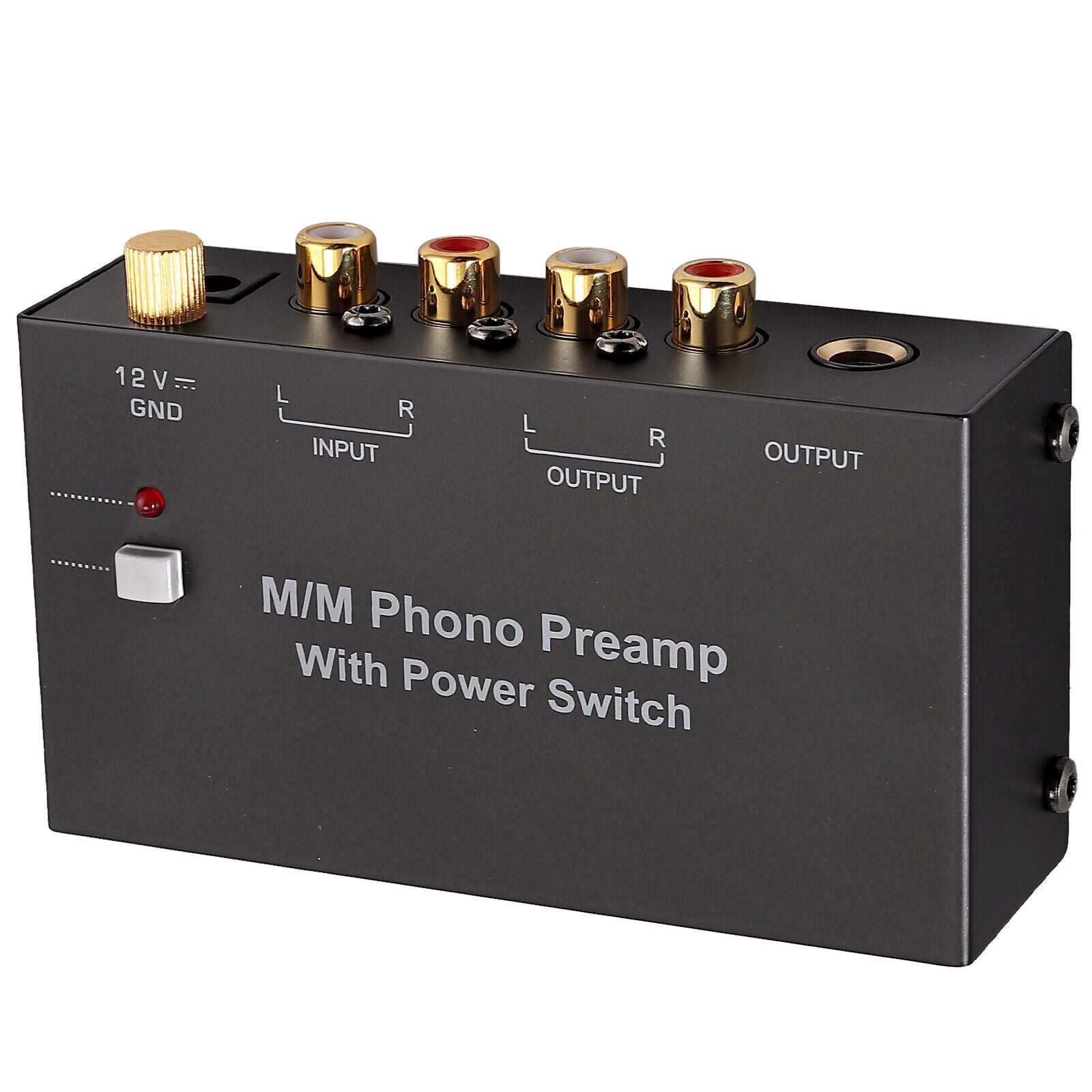

Turntable Preamplifier With Power

Description:

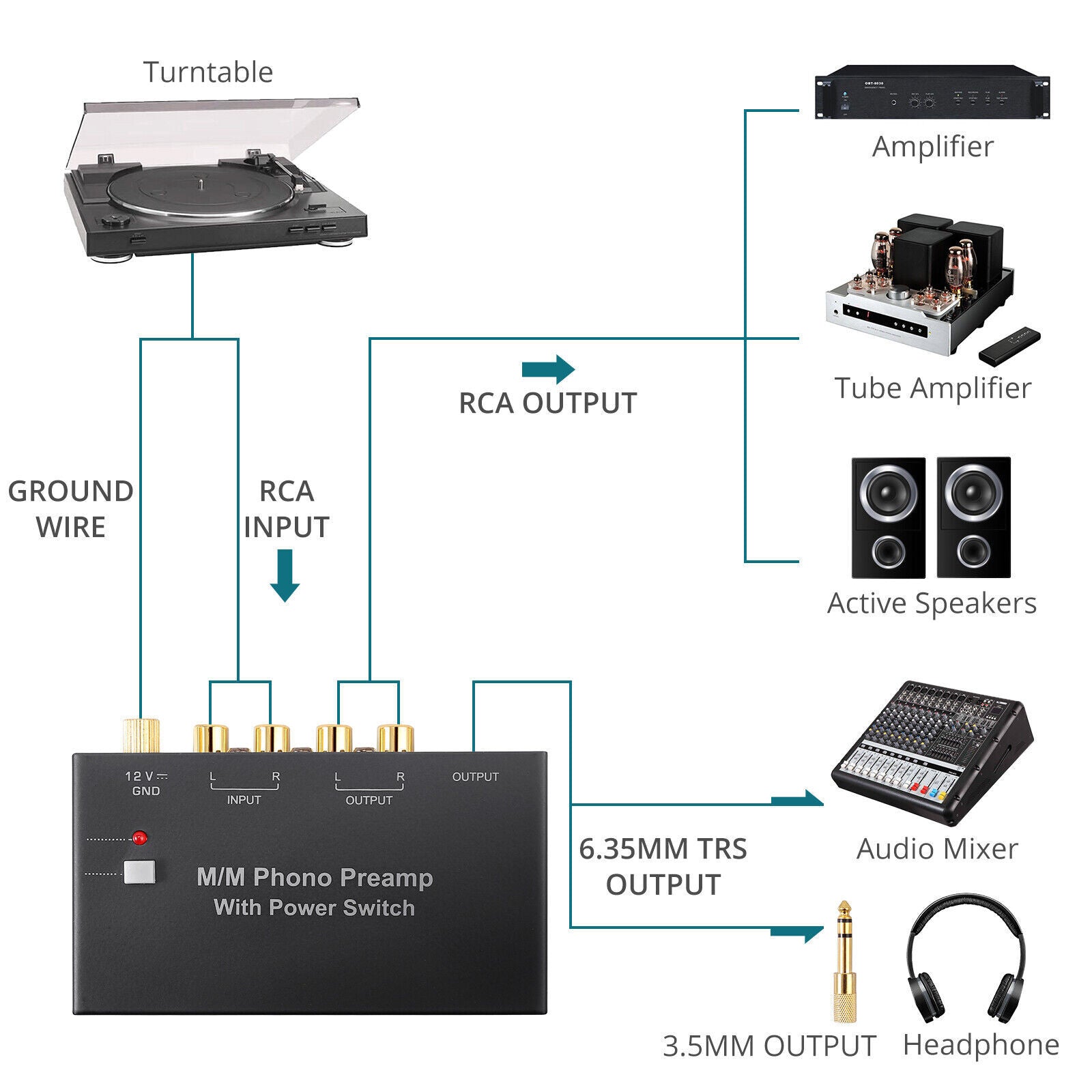

Compact ultra-low noise phono turntable preamp that converts phono signals to line level signals. Unique switch button design, Designed with grounding post to protect your turntable. Designed and assembled from high-quality components. Ideal for speakers, computers, laptops and more.

Specification:

color:Black
Material: Metal
Mains connection: external power supply,12 V / 150 mA;

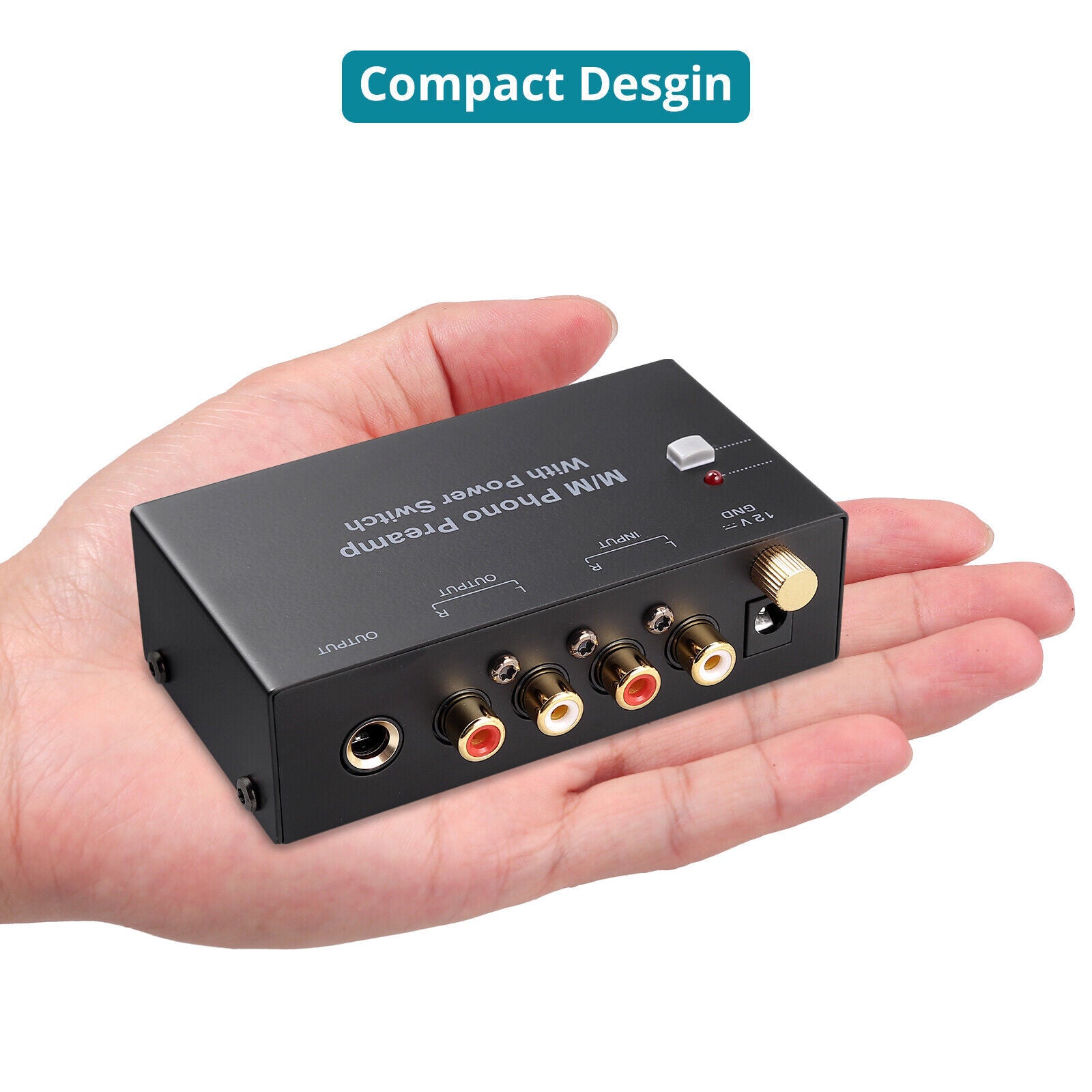

Dimensions (H x D x W) approx. 32 x 103 x 64 mm;
Weight approx. 0.40 lbs / 0.180 kg;

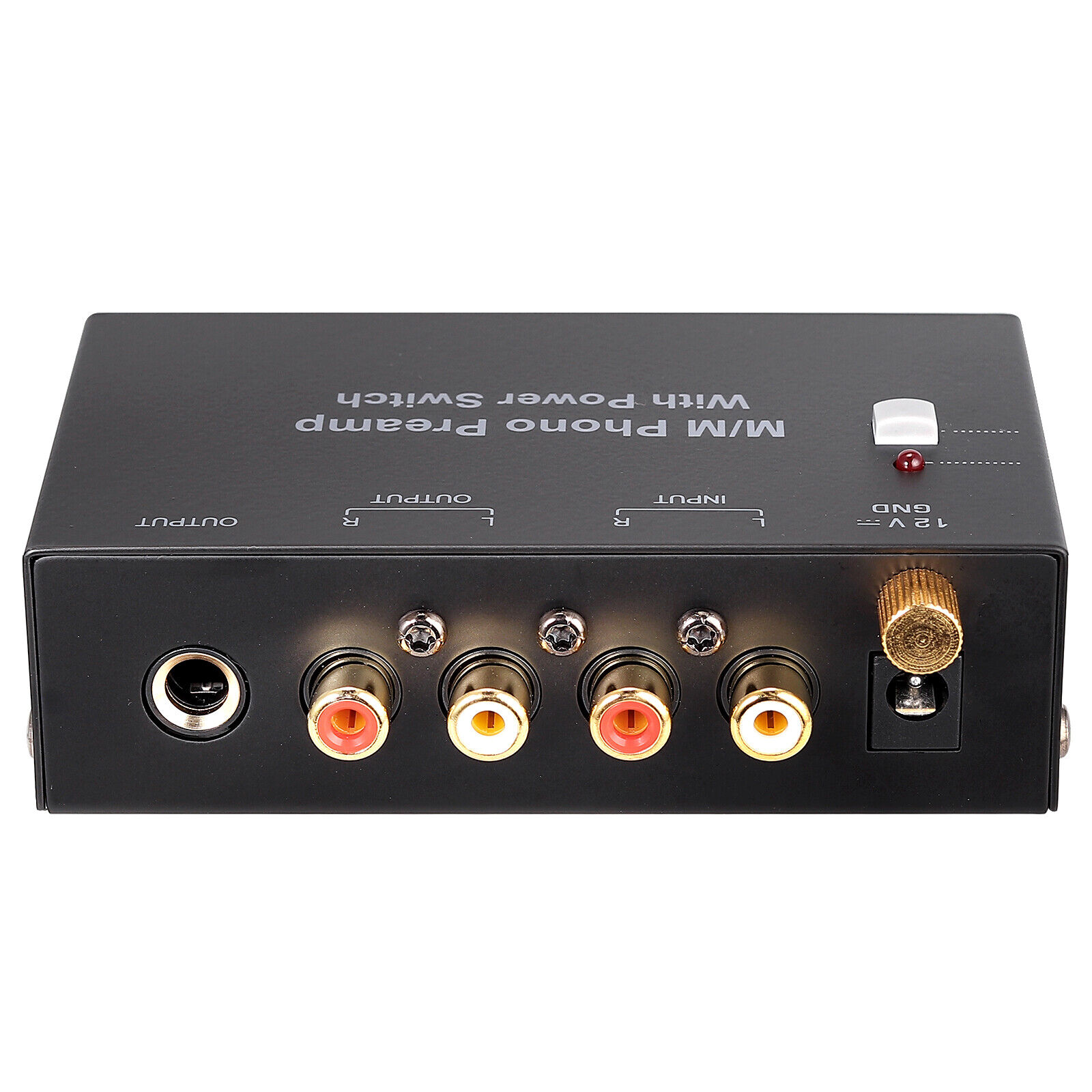

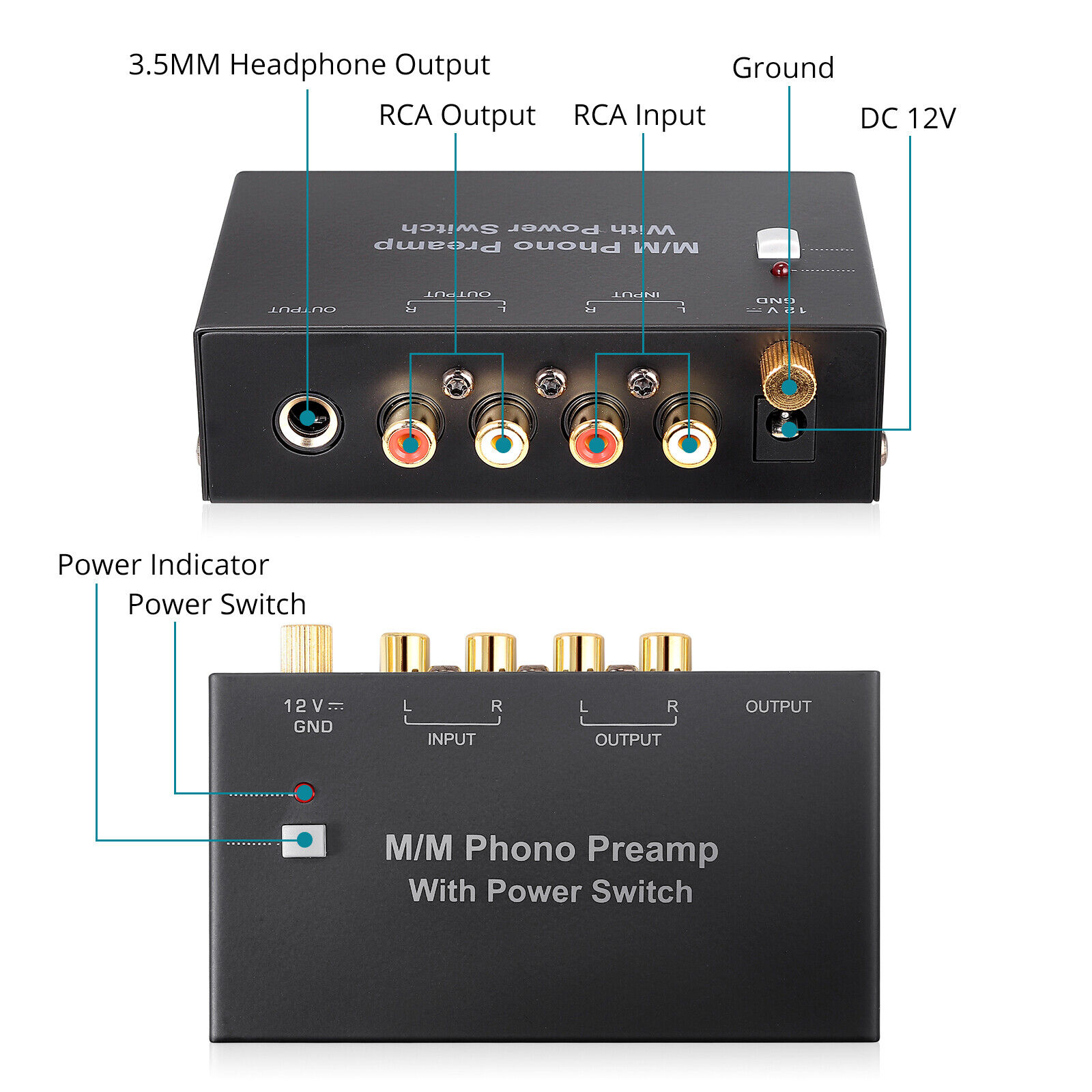

Input:
Type RCA connector
Impedance approx. 47 kW
Max. input level -23.5 dBV @ 1kHz

Output:
Type RCA and ¼” TRS, stereo connectors
Impedance approx. 50 W
Max. output level +11.5 dBV @ 1 kHz

System Specifications:
Frequency response:RIAA
THD:0.06% typ. @ -40 dBu/1 kHz
Gain:35 dB
Signal-to-noise ratio:68 dBu @ 0 dBu, A-weighted
Input sensitivity:5.3 mV @ 1 kHz

Note:

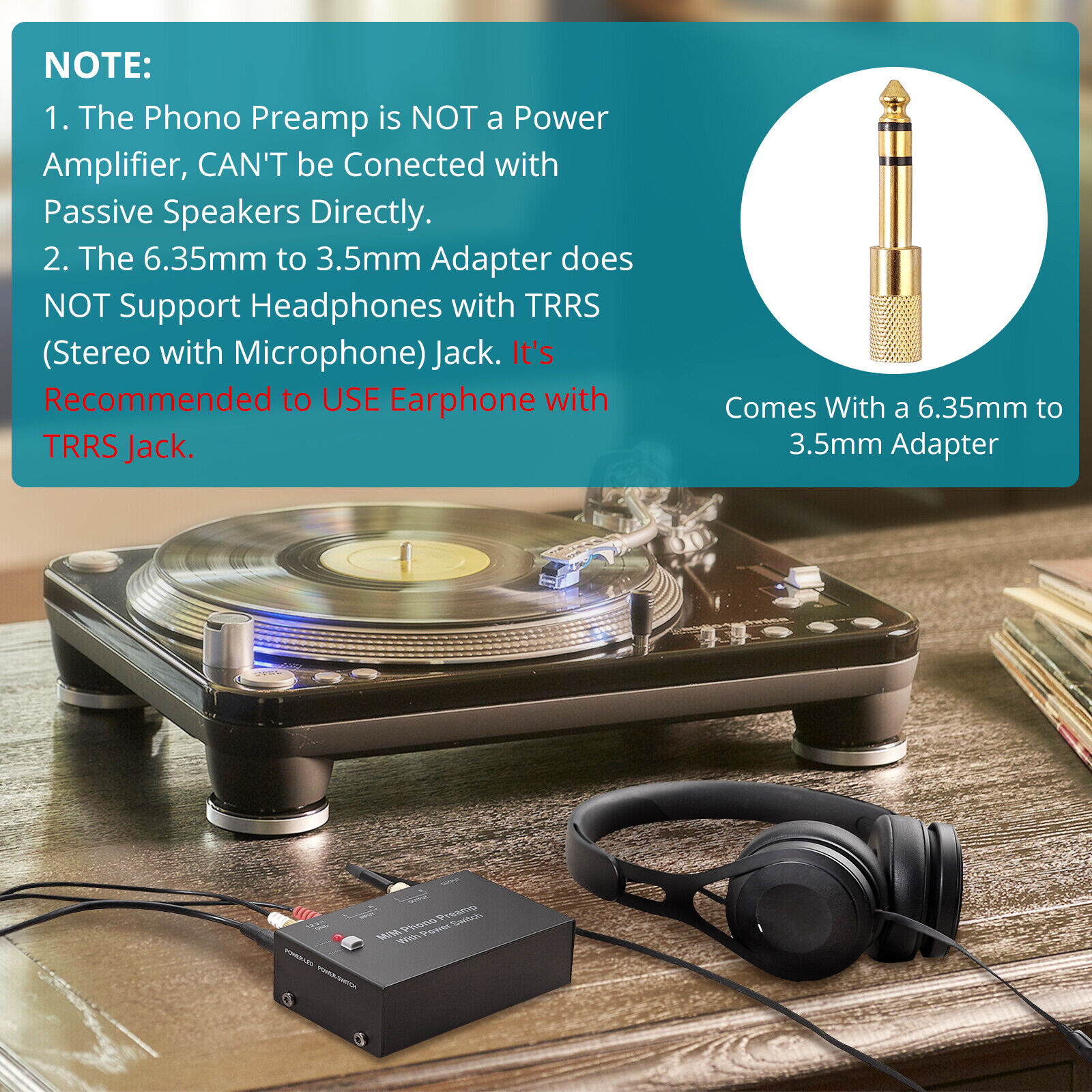

The adaptor does not support the earphone with TRRS Jack, which can only hear mono sound during use.

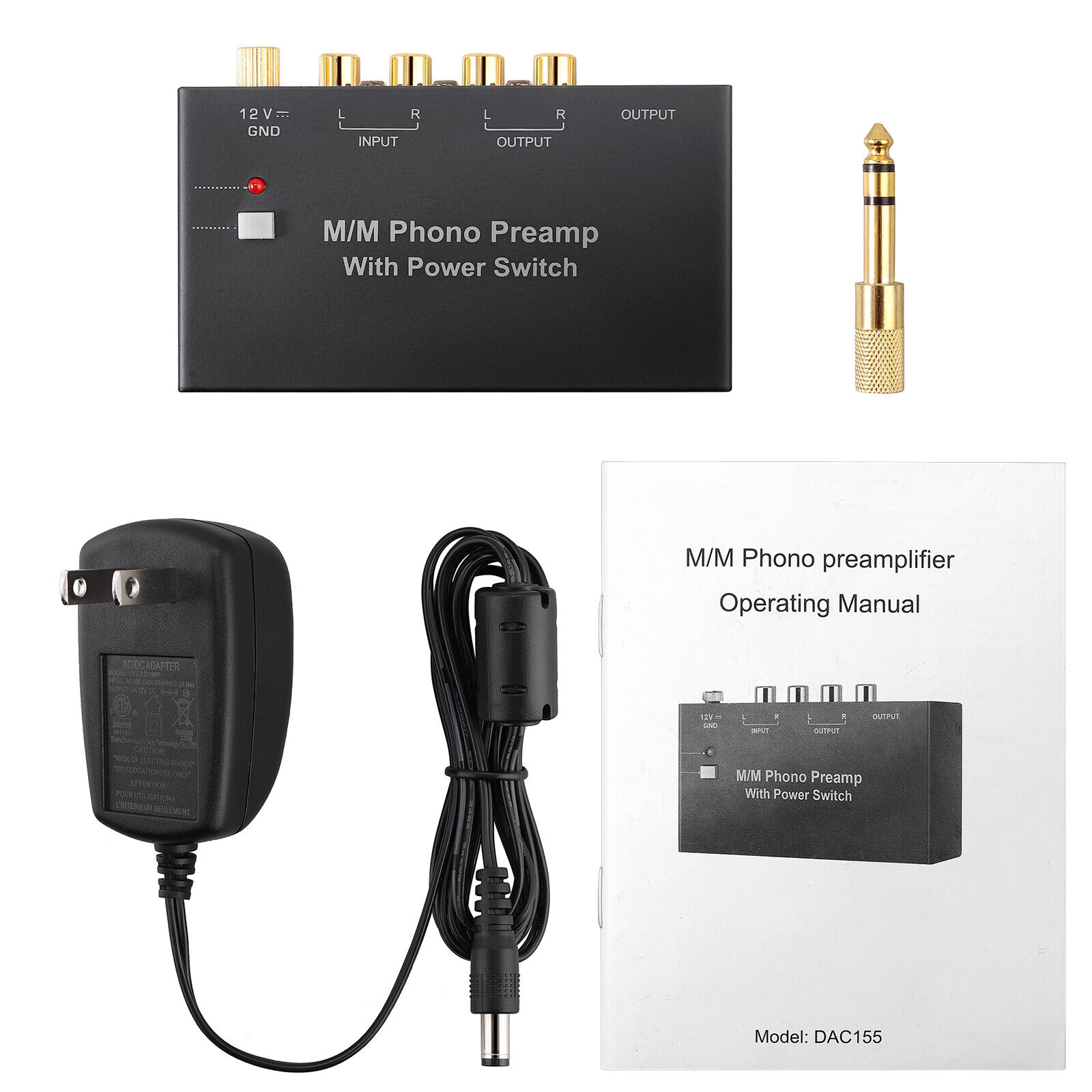

Package includes:
1 x Phono Preamp
1 x 3.5mm to 6.35mm adapter

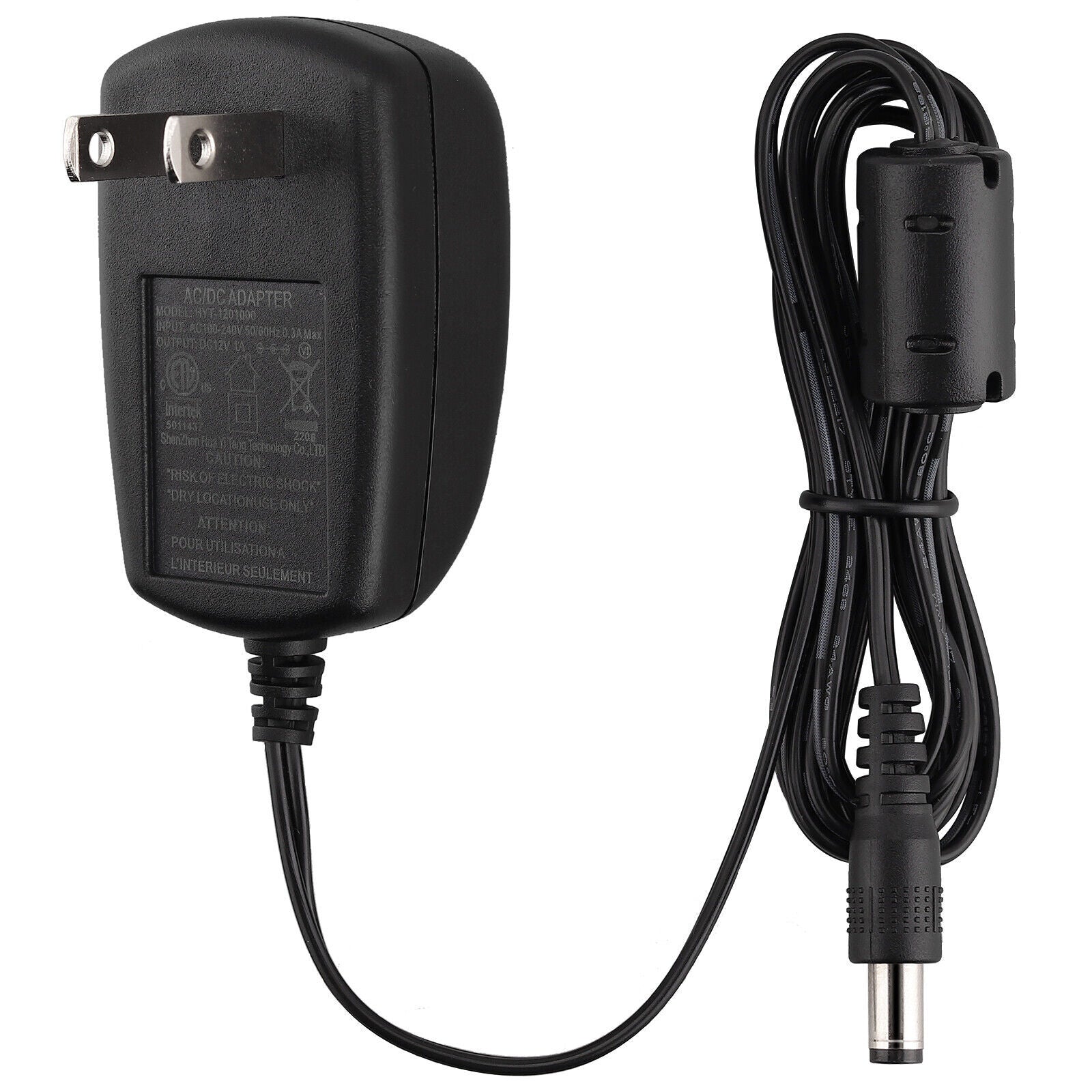

1 x Power Adapter
1 x User Manual
